HB-01F/S
【200万】耐高温风（水）冷摄像仪
product description
HB-01F/S series high temperature resistant shield is the water chamber cooling structure at the front end of the front air chamber. It is a product specially designed for special environment. In high temperature environment, the cavity is cooled by circulating cooling water, and the front end compressed air forms wind. The curtain can take away some of the heat and keep the window clean. The product can be used in places with high ambient temperature and a lot of dust.
The water-cooled shroud housing has a water chamber, and the cooling water is input from the rear inlet, and is discharged from the water outlet of the front end through the water chamber to remove heat, and is resistant to an ambient temperature of about 200 °C. The front end of the shield is provided with a wind chamber, which is introduced from the front air inlet. The compressed air can take away part of the heat through the inner cavity of the shield and is discharged from the exhaust port. However, the compressed air used is generally only coarsely filtered in the workshop, and the user is recommended to be in the compressed air. Add a fine filter before entering the shield.
technical parameter
functional characteristics
● The highest resolution is up to 1920×1080 @ 30 fps, and real-time images can be output at this resolution.
● Adopt video compression technology such as ROI, high compression ratio, and very flexible processing, ultra low code rate
● Smooth stream code setting to meet different requirements for image quality and fluency in different scenarios
● Support GBK font, support more Chinese characters and superb word superposition
● Support OSD color optional
● Support corridor mode, backlight compensation, automatic electronic shutter function, adapt to different monitoring environments
● Full-featured: heartbeat, mirroring, one-click recovery, etc.
● Support intelligent alarm: cross-border detection, regional intrusion detection
● Support intelligent post-search and cooperate with NVR to support event secondary search analysis
● Support GB28181 access, support EHOME platform access, support EZVIZ platform access
● Support NAS, Email, FTP, NTP server testing
● Supports HTTPS, SSH, and other security authentication, and supports the creation of certificates.
● Support user login locking mechanism and password complexity prompt
● Support alarm 1 in 1 out, audio 1 in 1 out, 128G SD card, 485, BNC
● The window is made of special explosion-proof glass. The surface of the glass is treated by nanotechnology. The luminous flux is high, it is not sticky, it is not sticky, and it rejects dust.
● The cylinder is cooled by cooling air/water circulation
product model | HB-01S/F |
sensor | 1/2.7 inch CMOS |
camera lens | 2.7-13.5mm Manual focus |
shutter | 1/3s to 1/100,000s |
automatic diaphragm | DC drive |
Day and night conversion mode | ICR infrared filter |
wide dynamic range | Digital width dynamics |
Digital noise reduction | 3D digital noise reduction |
Slow shutter | support |
Video compression standard | H.264/MJPEG |
Compression output rate | 32 Kbps~8Mbps |
Audio compression rate | 64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Maximum image size | 1920 × 1080 |
frame rate | 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720) |
Image setting | Corridor mode, saturation, brightness, contrast, sharpness can be adjusted by client or browser |
Backlight compensation | Support, optional area |
Day and night conversion mode | Automatic, timing, alarm trigger |
area-of-interest | ROI supports setting a fixed area for each of the two bitstreams |
memory function | Support for Micro SD/SDHC/ SDXC cards (128G) both supported by local storage, NAS (NFS,SMB/CIFS) |
interface protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 |
warning notice of intelligence | Mobile detection, dynamic analysis, occlusion alarm, network line break, IP address conflict, memory full, memory error |
WNINTEL | Cross-border detection, area intrusion detection |
Support protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour |
General function | One-click recovery, anti-flicker, double code stream, heartbeat, mirror image, password protection, video masking, watermarking technology,
Anonymous access, IP address filtering |
communication interface | 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface |
video out | 1Vp-p Composite Output（75Ω/BNC） |
memory function | Support for Micro SD card storage, maximum capacity 128GB |
audio interface | 1 in 1 out (optional) |
Alarm interface | 1 in 1 out (optional) |
Window tolerable temperature | ≤200℃ |
Use ambient temperature | -50℃∽+200℃ |
Use of environmental dust concentration | ≤200mg/m³ |
cooling water temperature | ≤35℃ |
cooling water flow | 0.1∽0.3 m3/h |
Cooling water pressure | 0.1Mpa |
Compressed air temperature | ≤35℃ |
Compressed air pressure | 0.1∽0.3Mpa |
Compressed air flow rate | 0.1∽0.2/min |
input voltage | AC220V/DC24V(optional) |
Product material | 304 stainless steel material (used in chemical industry, acid and alkali and other strong corrosive environment) |
Applicable environment | High temperature, dust, flammable, corrosive environment |
Intake hole specification | 2 M20x1.5 "outlet holes |

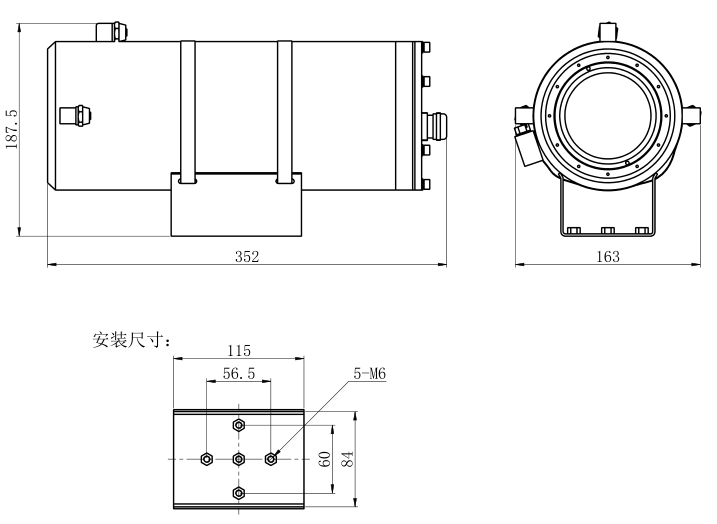

outline dimension | 351.5mm*153.5mm*182.5mm（Length, width, height) |
Installation mode | Fixed support |
Product weight | 10kg |
Explosion Proof Junction Box
Explosion Proof Junction Box
Functional characteristics
● Explosion-proof grade: Ex d IIC T6 Gb/Ex tD A21 IP68 T80°C
● Protection level ip68
● With 6 g-3/4" outlet holes, can also be customized according to customer requirements
● Can be installed with power supply, air-opening, fiber optic transceiver, lightning protection module, terminal box and other related equipment
● Made of 304 stainless steel material, suitable for use in highly corrosive environments
● Non-standard explosion-proof control box can be customized according to customer needs
technical parameter
Product number | HB-EX08 |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
temperature range | -40℃～ 60℃ |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Relative humidity | Not more than 95% (+25°c) |
Atmospheric pressure | 80kpa ～ 106kpa |
Constant temperature system | Optional |
Dimensions | 340mm*304mm*168 (handle height 24mm) |
Inner cavity size | 252mm*252mm*116mm |
Number of outlet holes / specifications | 6 g3/4" entry holes (optional) |
Installation method | Wall mounting, fixing bracket, column\platform |
product weight | ≤15kg |
Bracket
Bracket
Functional characteristics
● 304 stainless steel, suitable for use in highly corrosive environments
● For the installation of explosion-proof gun camera and other related equipment
● With flame resistance, corrosion resistance, water resistance, aging resistance, structural stability, and improved field reliability
Product number | HB-06S-B |
Carrying capacity | ≤40kg |
product material | Stainless steel 304 |
Dimensions | 373mm*147mm*163mm |
product weight | ≤2kg |
Explosion-proof flexible hose
Explosion-proof flexible hose
Functional characteristics
● 304 stainless steel, suitable for use in highly corrosive environments
● Special explosion-proof equipment for connecting explosion-proof camera and explosion-proof box
● With flame resistance, corrosion resistance, water resistance, aging resistance, structural stability, and improved field reliability
Product number | interface | the inside diameter of | length |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
