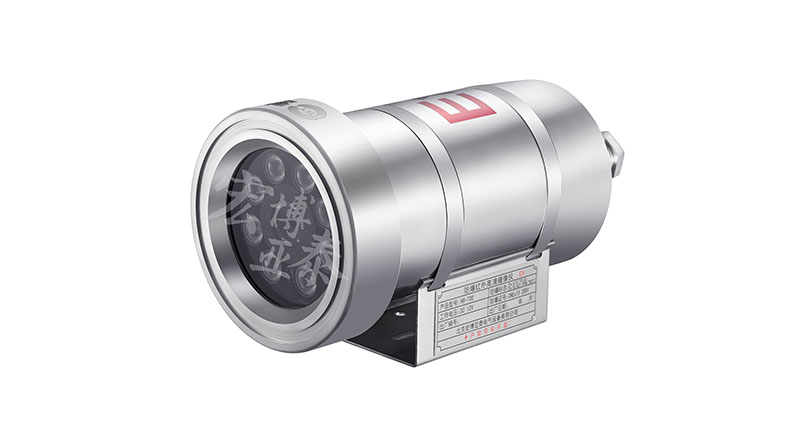

HB-701-B8204
200万防爆红外高清摄像仪
Use environment
It has iia, iib, iic flammable gas, and the ignition temperature group is zone 1 and zone 2 of the t1-t6 group. The flammable gas or the explosive mixture formed by steam and air is also applicable to the ignition temperature group. It is a place containing a combustible dust mixture in Zones 20, 21, and 22 of the t1-t6 group.Such as: petroleum, chemical, mine, military, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage.
Functional characteristics
● The highest level of explosion-proof certification for a variety of harsh and high-risk places
● 2 megapixel 1/2.9" cmos image sensor for high image clarity
● Use high-efficiency array infrared light, long service life, infrared distance up to 80m
● With 3 megapixel HD ir infrared lens, the night focus is not offset
● h.265 encoding format is compatible with h.264 encoding format, encoding compression is more efficient
● The window is made of special explosion-proof glass. The surface of the glass is treated by nanotechnology. The luminous flux is high and not
● Sticky, non-sticky, and repel dust
● Built-in semiconductor temperature control components for automatic heating and cooling
● Made of 304 stainless steel material, suitable for use in highly corrosive environments
Product number | HB-701-B8204 |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
sensor type | 1/2.9" CMOS |
Lens | 4mm/6mm/8mm/12mm/16mm optional |
Minimum illumination | Color 1.0Lux@F1.2, black and white 0.1 Lux@F1.2 |
Video coding standard | H.265；H.264 |
Maximum resolution | 1920*1080 |
Video bit rate | 200Kbps ～ 8Mbps |
Default stream | 4Mbps |
Business functions | Support web configuration, support OSD, support real-time video transmission, support mobile |
Lightning protection | Power supply, network comprehensive lightning protection, through itu-t k.21-2008, |
Access standard | ONVIF |
audio port | 1 input 1 output (optional) |
temperature range | -40℃~+60℃ |
Power supply | Dc12v 18w/ac85v ~ 260v/poe power supply (optional) |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Inlet hole specification | 2 g3/4" entry holes |
Installation method | Electric pan/tilt, universal joint, fixed bracket, column |
product weight | ≤4kg |
防爆设备控制箱
防爆设备控制箱
● 防爆等级 ：Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db
● 防护等级IP68
● 具备6个G-3/4”出线孔，也可根据客户要求定做
● 可安装电源、空开、光纤收发器、防雷模块、终端盒等其他相关设备
● 采用304不锈钢材料制造，适合强腐蚀性环境使用
● 可根据客户需要定制非标防爆控制箱
产品型号 | HB-EX08 |
防爆标志 | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ |
防护等级 | IP68 |
温度范围 | -40℃～ 60℃ |
产品材质 | 304 不锈钢材质（化工、酸碱等强腐蚀性环境使用） |
相对湿度 | 不大于 95%（+25°C） |
大气气压 | 80kpa ～ 106kpa |
恒温系统 | 可选配 |
外形尺寸 | 340mm*304mm*168( 把手高 24mm) |
内腔尺寸 | 252mm*252mm*116mm |
出线孔数量/规格 | 6 个 G3/4" 进线孔（可选配） |
安装方式 | 壁装、固定支架、立柱 \ 平台 |
产品重量 | ≤15kg |
防爆摄像机支架
防爆摄像机支架
● 304不锈钢材质，适用于强腐蚀性环境使用
● 用于安装防爆枪式摄像仪等相关专用设备
● 具有耐燃、耐腐蚀、耐水、耐老化、结构稳固，提高现场可靠性
产品型号 | HB-06S-B |
承载能力 | ≤40kg |
产品材质 | 不锈钢304 |
外形尺寸 | 373mm*147mm*163mm |
产品重量 | ≤2kg |
防爆挠性软管
防爆挠性软管
● 304不锈钢材质，适用于强腐蚀性环境使用
● 用于连接防爆摄像仪与防爆箱等专用防爆设备
● 具有耐燃、耐腐蚀、耐水、耐老化、结构稳固，提高现场可靠性
产品型号 | 接口 | 内径 | 长度 |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
