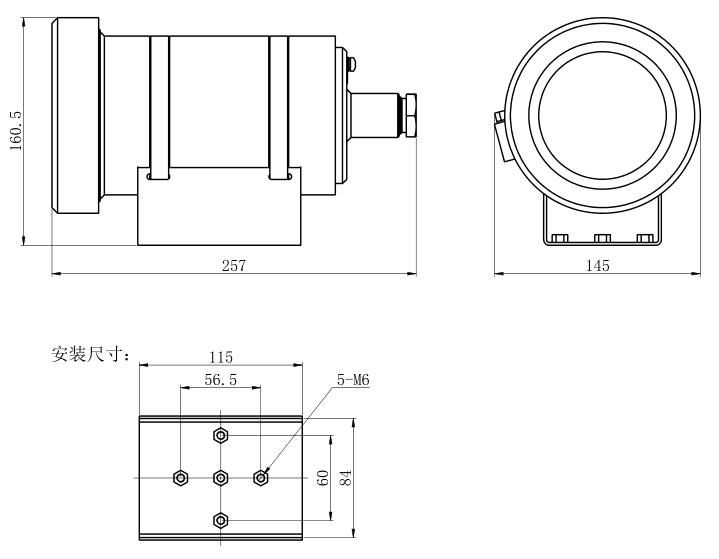

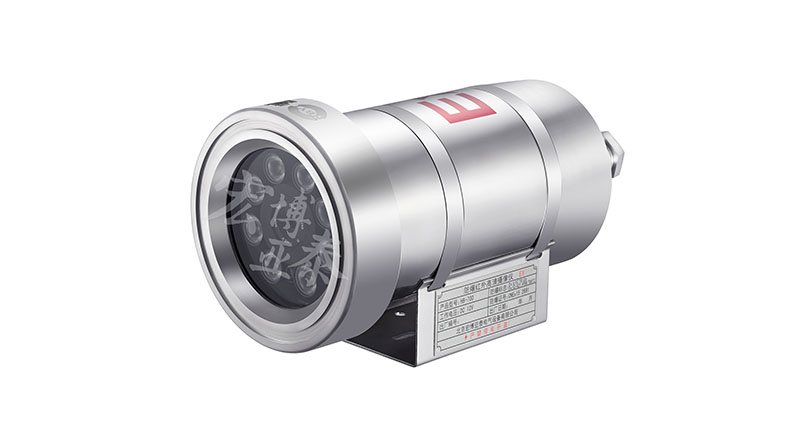

HB-700-B8204
2MP Explosion-proof Infrared Camera
It has flammable gases of Class II A, Class II B and Class II C. The ignition temperature group is zone 1 and zone 2 of group T1-T6. It is also suitable for the places where combustible gases or explosive mixtures of vapor and air are formed. It is also suitable for the places where the ignition temperature group is zone 20, zone 21 and zone 22 of group T1-T6 and where combustible dust mixtures are contained. For example: petroleum, chemical industry, mine, military industry, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.
● Dual explosion-proof certification, suitable for various harsh and high-risk places
● 200Megapixels1/2.7" Progressive CMOSSensors with maximum resolution1920*1080
● Use200Mega-pixel high-definition IR infrared lens with no night focus offset
● With high efficiency array infrared lamp, the service life is long and the irradiation distance can reach 100 meters.
● ICRAutomatic switching of infrared filter to realize real day and night monitoring
● Support3DDigital Noise Reduction to Support Digital Wide Dynamics
● The special explosion-proof glass for windows has high luminous flux and can completely eliminate the infrared halo.
● The surface of window glass is treated by nanotechnology, which is non-sticky to water, oil and dust.
● Low power consumption, low power consumption, convective heat dissipation design inside the fuselage, can work continuously for a long time.
● Semiconductor controllable temperature module can be optionally installed to realize automatic heating and heat dissipation function
● Various power supply modes, AC220V/DC12V (if other power supply modes are needed, they can be customized)
● 304 Stainless Steel Material, Suitable for Strong Corrosive Environment
● Explosion-proof, waterproof, dust-proof design, suitable for indoor and outdoor installation, all-weather use
Product Model | HB-700-B8204 |
Ex-mark | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ |
Protection Level | IP68 |
sensor | 1/2.7" Progressive CMOS |
Lens parameters | M12Interface 4mm( 6mm 、8mmMatching) |
shutter | 1/25~1/100000 |
aperture | fixed |
illumination | colour0.05Lux @(F1.2,AGC ON) ,black and white0 Lux with IR |
Day-to-night switching | Double filters switch synchronized images, automatic, timing |
Digital Noise Reduction | 3D Digital Noise Reduction |
pixel | 1920×1080，1280*720 |
frame rate | 50Hz: PAL @ 25fps ;60Hz :NTCS@30fps |
Image adjustment | Adjustable brightness, contrast, saturation, sharpness, chroma, etc. |
Image Settings | Regional occlusion, wide dynamic, anti-flicker, defogging, mirror, flip, backlight compensation, strong light suppression |
Character Overlay | Support channel name, date and time, multi-line character display, overlay character size and position adjustable |
ROI | 4Regional settings |
Intelligent Alarm | Mobile Detection, Video Occlusion, Perimeter, Trip Line, Network Break, Hard Disk Error, IP Conflict, Disk Full |
Support protocol | TCP/IP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPoE,SMTP,UPnP |
Access Protocol | ONVIF，GB/T28181 、Active registration |
General function | Three-bit stream, password protection, heartbeat |
Compression standard | H.265 Main Profile H.264 Baseline/Main Profile/High Profile |
Compressed Output Bit Rate | 64Kbps~10Mbps |
Alarm interface | 1In-out (optional) |
communication interface | 1个RJ45 10M/100MAdaptive Ethernet Port |
Audio interface | 1In-out (optional) |
storage | TF Card Local Storage 128G (Class10 is recommended) |
Infrared Distance | 20-100M |
wavelength | 850nm |
Infrared switch | Automatic turn-on of illumination below 0 Lux |
temperature range | -40℃～+60℃ |
Power supply voltage | DC12V /AC220V/PoEPower supply (optional) |
power | ≤ 18W |
Product Material | 304Stainless steel material |
Inlet hole specification | 1个G3/4"Inlet hole |
Installation mode | Fixed brackets, columns, wall mountings, etc. |
Product weight | ≤ 5.0kg |
Explosion-proof equipment control box
Explosion-proof equipment control box
● Explosion-proof grade ：Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db
● Protection LevelIP68
● 具备6个G-3/4”Outlet hole can also be customized according to customer requirements.
● It can install power supply, open, optical transceiver, lightning protection module, terminal box and other related equipment.
● 采用304 Stainless Steel Material, Suitable for Strong Corrosive Environment
● Non-standard explosion-proof control box can be customized according to customers'needs
Product Model | HB-EX08 |
Ex-mark | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ |
Protection Level | IP68 |
temperature range | -40℃～ 60℃ |
Product Material | 304 stainless steel material (used in chemical industry, acid-base environment, etc.) |
relative humidity | Not more than 95%（+25°C） |
Atmospheric pressure | 80kpa ～ 106kpa |
Constant temperature system | Optional |
Shape size | 340mm*304mm*168( Handle high 24mm) |
Cavity size | 252mm*252mm*116mm |
Number/specification of outlet holes | 6 个 G3/4" Inlet hole (optional) |
Installation mode | Wall Mounting, Fixed Bracket, Column/Platform |
Product weight | ≤15kg |
Explosion-proof camera bracket
Explosion-proof camera bracket
● 304 stainless steel, suitable for use in highly corrosive environment
● Used for installing explosion-proofGun typeSpecial equipment such as camera
● It is fire-resistant, corrosion-resistant, water-resistant, ageing-resistant, stable in structure and improves field reliability.
Product Model | HB-06S-B |
carrying capacity | ≤40kg |
Product Material | Stainless steel 304 |
Shape size | 373mm*147mm*163mm |
Product weight | ≤2kg |
Explosion-proof flexible hose
Explosion-proof flexible hose
● 304 stainless steel, suitable for use in highly corrosive environment
● Be used forConnectExplosion-proof cameraWith explosion-proof box, etcSpecial-purposeexplosion-proofequipment
● It is fire-resistant, corrosion-resistant, water-resistant, ageing-resistant, stable in structure and improves field reliability.
Product Model | Interface | internal diameter | length |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
