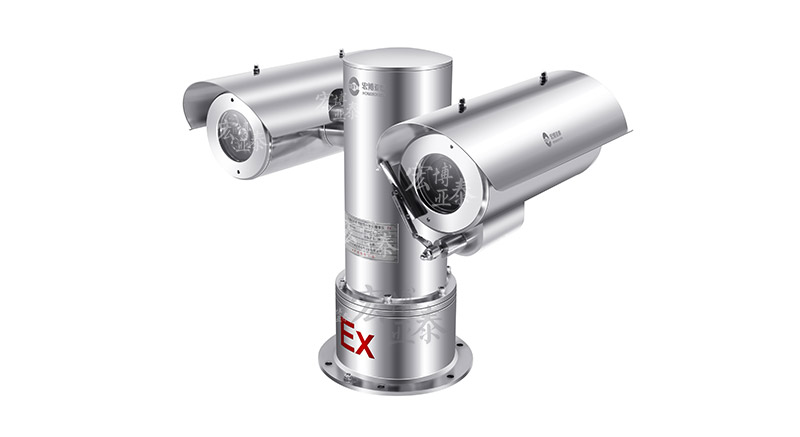

HB-8000S-F9220
[20X 2Magapixel] Explosion-Proof infrared HD PTZ camera
Use environment
It has iia, iib, iic flammable gas, and the ignition temperature group is zone 1 and zone 2 of the t1-t6 group. The flammable gas or the explosive mixture formed by steam and air is also applicable to the ignition temperature group. It is a place containing a combustible dust mixture in Zones 20, 21, and 22 of the t1-t6 group.Such as: petroleum, chemical, mine, military, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage.
Functional characteristics
● The highest level of explosion-proof certification, explosion-proof mark: ExdIICT6 Gb/Ex tD A21 IP68 T80 °C
● High-performance 2 megapixel 1/2.8" cmos image sensor for high image clarity
● With 20x optical zoom, optical zoom f=4.7-94mm,
● Support icr infrared filter automatic switching
● Support h.265 efficient compression algorithm, greatly reducing the bit rate
● Focus fast and accurate, digital wide dynamic
● High-efficiency infrared/white light array lamp, low thermal energy, low power consumption, infrared distance up to 100 meters
● Horizontal rotation from 0° to 360°, vertical direction from 0° to 180°, no monitoring blind zone
● Intelligent wiper function, the wiper adopts automobile wiper blade, which has good weather resistance and easy replacement.
● Turbine worm drive structure design, precision stepper motor drive, responsive, smooth operation
● The window is made of special explosion-proof glass. The surface of the glass is treated by nanotechnology. The luminous flux is high, it is not sticky, it is not sticky, and it rejects dust.
● Built-in semiconductor temperature control components for automatic heating and heat dissipation
Product number | HB-8000S-F9220 |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
sensor type | 1/2.8" Progressive Scan CMOS |
Scanning system | line-by-line scan |
signal system | PAL/NTSC |
Signal to noise ratio | Greater than 52dB |
Video output | Network code output |
Resolution | 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)50HZ:25fps(1280x720) 60HZ:30fps(1280x720) |
focal length | 4.7-94mm, 20x optical |
aperture | F1.6-F3.5 |
Horizontal viewing angle | 61.4-2.9 degrees (wide angle - telephoto) |
Close-up distance | 10-1500mm (wide angle - telephoto) |
Zoom speed | About 2.7 seconds (optical, wide-angle - telephoto) |
Day and night conversion mode | Icr filter |
Video compression standard | H.265/H.264 |
Compressed output bit rate | 32kbps-12Mbps |
Audio compression standard | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
supporting agreement | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional) |
White balance | Automatic 1/Auto 2/Indoor/Outdoor/Manual/Incandescent/Fluorescent |
Focus mode | Auto/manual/one focus |
Exposure mode | Auto Exposure / Aperture Priority / Shutter Priority / Manual Exposure |
Day and night mode | Auto / color / black and white |
Electronic shutter | 1/1 second ~ 1/30,000 seconds |
Wide dynamic | 4 levels adjustable |
Exposure compensation | 10 levels adjustable |
External Interface | 36pin FFC (including network port, RS485, RS232, CVBS, SDHC, Alarm In/Out, Line In/Out, power supply) |
Alarm interface | 1 in 1 out (optional) |
Infrared distance | 100m |
Infrared wavelength | 850nm |
Infrared switch | Illumination is automatically turned on below 0Lux |
Rotation range | Horizontal: 360° continuous rotation Vertical: ±90° |
spinning speed | Level: 0.1°/S~40°/s Vertical: 0.1°/S~40°/s |
Power failure memory | stand by |
Number of preset points | 300 |
Baud rate | 2400 / 4800 / 9600 bps |
letter of agreement | Various common protocols such as pelco-d and pelco-p |
Preset precision | ±0.1° |
temperature range | -40℃~+60℃ |
Power supply | Ac85v ~ 260v/dc24v 3a (optional) |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Inlet hole specification | 1 g3/4" entry hole |
Installation method | A variety of installation options are available depending on the application environment |
product weight | ≤26kg |
Explosion Proof Junction Box
Explosion Proof Junction Box
Functional characteristics
● Explosion-proof grade: Ex d IIC T6 Gb/Ex tD A21 IP68 T80°C
● Protection level ip68
● With 6 g-3/4" outlet holes, can also be customized according to customer requirements
● Can be installed with power supply, air-opening, fiber optic transceiver, lightning protection module, terminal box and other related equipment
● Made of 304 stainless steel material, suitable for use in highly corrosive environments
● Non-standard explosion-proof control box can be customized according to customer needs
technical parameter
Product number | HB-EX08 |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
temperature range | -40℃～ 60℃ |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Relative humidity | Not more than 95% (+25°c) |
Atmospheric pressure | 80kpa ～ 106kpa |
Constant temperature system | Optional |
Dimensions | 340mm*304mm*168 (handle height 24mm) |
Inner cavity size | 252mm*252mm*116mm |
Number of outlet holes / specifications | 6 g3/4" entry holes (optional) |
Installation method | Wall mounting, fixing bracket, column\platform |
product weight | ≤15kg |
PTZ Bracket
PTZ Bracket
Functional characteristics
● 304 stainless steel, suitable for use in highly corrosive environments
● For the installation of explosion-proof integrated camera, explosion-proof electric cloud platform and other related equipment
● With flame resistance, corrosion resistance, water resistance, aging resistance, structural stability, and improved field reliability
Product number | HB-01Y |
Carrying capacity | ≤50kg |
product material | 304 stainless steel |
Dimensions | 508mm*180mm*150mm |
product weight | ≤5kg |
Explosion Proof hose
Explosion Proof hose
Functional characteristics
● 304 stainless steel, suitable for use in highly corrosive environments
● Special explosion-proof equipment for connecting explosion-proof camera and explosion-proof box
● With flame resistance, corrosion resistance, water resistance, aging resistance, structural stability, and improved field reliability
Product number | interface | the inside diameter of | length |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
