KBA127-J

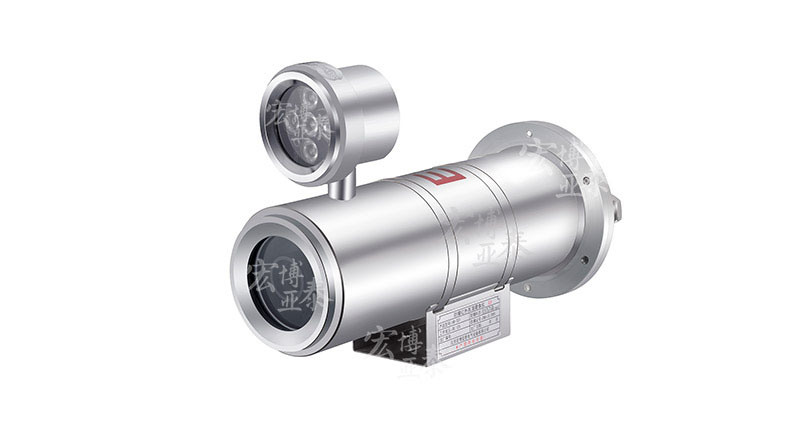

[2MP] Mine explosion-proof IR camera
Use environment
It is used in the high-risk areas with sub-class gas group (typical gas is methane, gas, etc.), such as coal mine gas and coal dust explosion hazard.The outer casing is made of 304 stainless steel. The window is made of special tempered glass and can be used for a long time in the environment of -40 ° C ~ 60 ° C. The camera has the characteristics of small size, light weight, explosion-proof, waterproof, dustproof and shockproof. Obtaining good monitoring results in a dimly lit environment is an important part of the coal mine industry monitoring security system.
Functional characteristics
● The highest resolution is up to 1920×1080 @ 30 fps, and real-time images can be output at this resolution.
● Adopt video compression technology such as roi, high compression ratio, and very flexible processing, ultra low bit rate
● Smooth stream code setting to meet different requirements for image quality and fluency in different scenarios
● Support osd color optional
● Support corridor mode, backlight compensation, automatic electronic shutter function, adapt to different monitoring environments
● Full-featured: heartbeat, mirroring, one-click recovery, etc.
● Support intelligent alarm: cross-border detection, regional intrusion detection
● Support intelligent post-search and secondary search analysis of nvr support events
● Support gb28181 access, support ehome platform access, support ezviz platform access
● Support NAS, Email, FTP, NTP server testing
● Supports https, ssh and other security certifications, and supports the creation of certificates.
● Support user login locking mechanism and password complexity prompt
● Support alarm 1 in 1 out, audio 1 in 1 out, 128g sd card, 485, bnc
● Multi-angle matte / glossy array infrared light, low heat, low power consumption, infrared distance up to 100 meters
● The window is made of special explosion-proof glass. The surface of the glass is treated by nanotechnology. The luminous flux is high, it is not sticky, it is not sticky, and it rejects dust.
● Built-in semiconductor temperature control components for automatic heating and cooling
Product number | KBA127-J |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
sensor | 1/2.7 inch cmos |
Lens | 2.7-13.5mm manual focusing |
shutter | 1/3 second to 1/100,000 seconds |
Automatic aperture | Dc drive |
Day and night conversion mode | Icr infrared filter |
Wide dynamic range | Digital wide dynamic |
Digital noise reduction | 3d digital noise reduction |
Slow shutter | stand by |
Video compression standard | H.264/MJPEG |
Compressed output bit rate | 32 Kbps~8Mbps |
Audio compression code rate | 64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Maximum image size | 1920 × 1080 |
Frame rate | 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720) |
Image setting | Corridor mode, saturation, brightness, contrast, sharpness adjustable through the client or browser |
BLC | Support, selectable area |
Day and night conversion method | Automatic, timing, alarm trigger |
Area of interest | Roi supports dual code streams to set a fixed area |
Storage function | Support Micro SD/SDHC/SDXC card (128G) off network local storage, NAS (NFS, SMB/CIFS support) |
Interface Protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 |
Intelligent alarm | Motion detection, dynamic analysis, occlusion alarm, network cable break, ip address conflict, memory full, memory error |
Intelligent alarm | Cross-border detection, regional intrusion detection |
supporting agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour |
General function | One-click recovery, anti-flicker, dual stream, heartbeat, mirroring, password protection, video masking, watermarking, Anonymous access, ip address filtering |
Communication Interface | 1 rj45 10m/100m adaptive Ethernet port, 1 rs-485 interface (optional fiber interface) |
Video output | 1Vp-p Composite Output（75Ω/BNC） |
Storage function | Support Micro SD card storage, maximum capacity 128GB |
audio port | 1 input 1 output (optional) |
Alarm interface | 1 input 1 output (optional) |
Infrared distance | 100M |
wavelength | 850nm |
Infrared switch | Illumination is automatically turned on below 0Lux |
temperature range | -40℃~+60℃ |
Power supply | Dc12v 18w/ac85v ~ 260v/poe (optional) |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Inlet hole specification | 2 g3/4" entry holes |
Installation method | Electric pan/tilt, universal joint, fixed bracket, column |
product weight | ≤8kg |
Explosion Proof Junction Box
Explosion Proof Junction Box
Functional characteristics
● Explosion-proof grade: Ex d IIC T6 Gb/Ex tD A21 IP68 T80°C
● Protection level ip68
● With 6 g-3/4" outlet holes, can also be customized according to customer requirements
● Can be installed with power supply, air-opening, fiber optic transceiver, lightning protection module, terminal box and other related equipment
● Made of 304 stainless steel material, suitable for use in highly corrosive environments
● Non-standard explosion-proof control box can be customized according to customer needs
technical parameter
Product number | HB-EX08 |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
temperature range | -40℃～ 60℃ |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Relative humidity | Not more than 95% (+25°c) |
Atmospheric pressure | 80kpa ～ 106kpa |
Constant temperature system | Optional |
Dimensions | 340mm*304mm*168 (handle height 24mm) |
Inner cavity size | 252mm*252mm*116mm |
Number of outlet holes / specifications | 6 g3/4" entry holes (optional) |
Installation method | Wall mounting, fixing bracket, column\platform |
product weight | ≤15kg |
Bracket
Bracket
Functional characteristics
● 304 stainless steel, suitable for use in highly corrosive environments
● For the installation of explosion-proof gun camera and other related equipment
● With flame resistance, corrosion resistance, water resistance, aging resistance, structural stability, and improved field reliability
Product number | HB-06S-B |
Carrying capacity | ≤40kg |
product material | Stainless steel 304 |
Dimensions | 373mm*147mm*163mm |
product weight | ≤2kg |
Explosion Proof hose
Explosion Proof hose
Functional characteristics
● 304 stainless steel, suitable for use in highly corrosive environments
● Special explosion-proof equipment for connecting explosion-proof camera and explosion-proof box
● With flame resistance, corrosion resistance, water resistance, aging resistance, structural stability, and improved field reliability
Product number | interface | the inside diameter of | length |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
