HB-6001Q-S7212X
【12X 2MP】Explosion Proof Star Level Speed dome Camera
Use environment
It has IIA, IIB, IIC flammable gas, and the ignition temperature group is zone 1 and zone 2 of the T1-T6 group. The flammable gas or the explosive mixture formed by steam and air is also applicable to the ignition temperature group. It is a place containing a combustible dust mixture in Zones 20, 21, and 22 of the T1-T6 group. Such as: petroleum, chemical, mine, military, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage.
functional characteristics
● The highest level of explosion-proof certification for a variety of harsh and high-risk places
● High-performance 2 megapixel 1/2.8" CMOS image sensor for high image clarity
● Support 12 times optical zoom, 16 times digital zoom, total zoom up to 192 times
● Support various network protocols such as GB/T 28181, ONVIF, CGI, PISA, etc.
● Supports intelligent functions such as IVS cable intrusion and regional intrusion
● Unique 3D positioning function to capture targets more conveniently, accurately and quickly
● 360° continuous rotation in the horizontal direction, continuous rotation from 180° to 90° in the vertical direction, continuous monitoring, no monitoring blind zone
● 8 cruise paths can be completed according to the preset positions. 5 track paths can be set, and the recording time of each path is greater than 15 minutes.
● Aviation grade high-strength polycarbonate explosion-proof transparent dome, hardened, anti-fog treatment, anti-reflection, light transmittance up to 96%
● Built-in semiconductor temperature control components for automatic heating and cooling
product model | HB-6001Q-S7212X |
Explosion proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Ingress Protection | IP68 |
imaging sensor | 1/2.8 inch CMOS |
Total pixel of sensor | about 21.6 million pixels |
Horizontal resolution | ≥1000TVL |
Maximum image size | 1920×1080 |
resolution ratio | 2MP |
minimal illumination | Color: 0.005Lux/F1.6 black and white: 0.0005Lux/F1.6 |
gain control | Auto/ Manual |
3D noise reduction | support |
2D noise reduction | support |
noise-signal ratio | ≥50dB |
white balance | Automatic / manual / tracking / outdoor / indoor / outdoor automatic / sodium lamp |
electronic shutter | 1/1～1/30000s |
Anti-fog function | support |
Backlight compensation | support |
Wide dynamic | support |
Strong light suppression | support |
Digital zoom | 16x |
day and night | Automatic ICR filter Turn color to black |
Focusing mode | Automatic / semi-automatic / manual |
focal distance | 5.3～64 mm |
Zoom speed | About 3.5s |
angle of field | Horizontal: 58.56 ° ~ 4.94 ° (close focus to far-focus) |
Near camera distance | 100mm～1500mm（near-focus to far-focus） |
Optical zoom | 12x |
Aperture value | F1.6～F2.8 |
horizontal extent | 0°～360°long running |
Vertical range | Continuous monitoring after 0 ° ~ 90 ° automatic turning over 180 ° |
keying speed | Horizontal: 0.1 °~ 300 °/ s vertical: 0.1 °~ 250 °/ s |
Call preset point speed | Horizontal: 300 °/ s vertical: 300 °/ s |
Long focal speed limit | support |
Preset point | 300 |
Automatic cruise | 8, each of which can be added with 32 preset points |
Automatic track patrol | 5 |
Automatic line scan | 5 |
Power off memory | support |
Privacy occlusion | Up to 24 blocks with up to 8 blocks on the same screen |
Idle action | Preset points/automatic tracking/automatic cruise/horizontal line sweep. |
timed task | Preset points/automatic tracking/automatic cruise/horizontal line sweep. |
Pan-tilt function | Support idle action, FD 3D positioning and humanized focal length/speed automatic matching function. |
character display | support |
Main code stream resolution and frame rate | 50Hz:25fps(1920×1080)、25fps(1280×720)60Hz:30fps(1920×1080)、30fps(1280×720) |
Subcode stream resolution and frame rate | 50Hz:25fps(704×576)、25fps(352×288)60Hz:30fps(704×480)、30fps(352×240) |
Third bitstream resolution and frame rate | 25fps(1280×720)、25fps(704×576)、25fps(352×288)30fps(1280×720)、30fps(704×480)、30fps(352×240) |
video compression | H.264MainProfile/H.265/M-JPEG |
audio compression | G.711a/G.711mu/AAC |
Phonetic intercom | support |
networking protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
ROI | support |
SVC | support |
zone focusing | support |
time display | Support, such as week, date |
API | Open APIs that support software integration, support standard protocols (Onvif, CGI, GB/ T 28181, PISA), support Dahua SDK and third-party management platform access |
browser | Support for non-IE browsers such as IE7 (including IE7) Google, Firefox, Apple, etc. |
Preview the number of users at the same time | Up to 20 channels (total bandwidth 48m) |
safe mode | Authorized username and password, as well as MAC address binding; HTTPS encryption; IEEE 802.1x network access control (whitelist)） |
user management | Multi-level user rights management |
intelligent detection | Video dynamic / occlusion detection, network disconnect detection, IP conflict detection, memory card status detection, storage space detection |
intelligence | Support crossing fence, trip intrusion, regional intrusion, object left, rapid movement, stop detection, personnel aggregation, article movement, wandering detection of various behavior detection; support of multiple trigger rule linkage actions; support target filtering |
Intelligent face detection | support |
audio interface | 1 in 1 out (optional) |
SD card interface | Built-in Micro SD card slot, support SD/ SDHC/ SDXC (maximum support 256G), can support manual video/ alarm video, support the continuous transmission of the network, and the video is not lost. |
access standard | ONVIF、GB/T28181、CGI、PISA |
Alarm interface | 2 switch quantity input (0 ~ 5V DC); 1), support alarm linkage |
temperature range | -40℃~+70℃ |
power supply mode | AC24V 1.5A/POE-AT/AC220V（optional ） |
Product material | 304 stainless steel (used in chemical, acid-base and other corrosive environments) |
Intake hole specification | 1 G3/4" entrance hole |

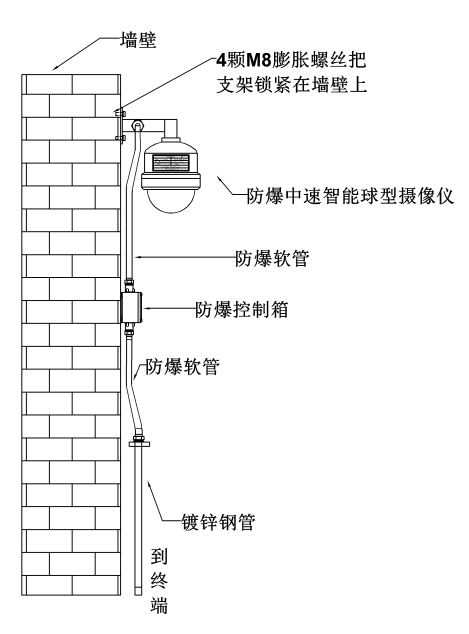

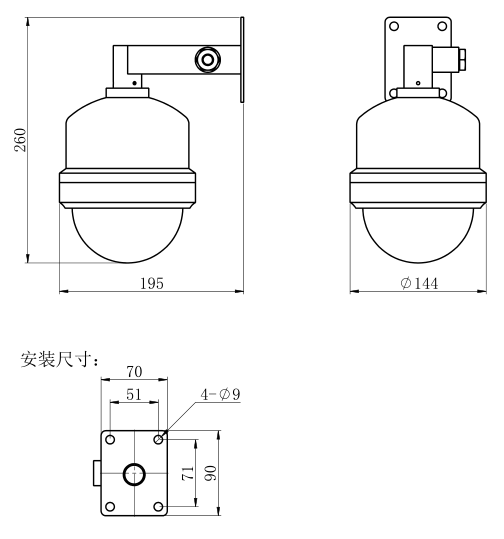

Installation mode | Multiple installation options can be selected according to the application environment |
Product weight | ≤12kg |
防爆设备控制箱
防爆设备控制箱
● 防爆等级 ：Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db
● 防护等级IP68
● 具备6个G-3/4”出线孔，也可根据客户要求定做
● 可安装电源、空开、光纤收发器、防雷模块、终端盒等其他相关设备
● 采用304不锈钢材料制造，适合强腐蚀性环境使用
● 可根据客户需要定制非标防爆控制箱
产品型号 | HB-EX08 |
防爆标志 | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ |
防护等级 | IP68 |
温度范围 | -40℃～ 60℃ |
产品材质 | 304 不锈钢材质（化工、酸碱等强腐蚀性环境使用） |
相对湿度 | 不大于 95%（+25°C） |
大气气压 | 80kpa ～ 106kpa |
恒温系统 | 可选配 |
外形尺寸 | 340mm*304mm*168( 把手高 24mm) |
内腔尺寸 | 252mm*252mm*116mm |
出线孔数量/规格 | 6 个 G3/4" 进线孔（可选配） |
安装方式 | 壁装、固定支架、立柱 \ 平台 |
产品重量 | ≤15kg |
防爆挠性软管
防爆挠性软管
● 304不锈钢材质，适用于强腐蚀性环境使用
● 用于连接防爆摄像仪与防爆箱等专用防爆设备
● 具有耐燃、耐腐蚀、耐水、耐老化、结构稳固，提高现场可靠性
产品型号 | 接口 | 内径 | 长度 |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
