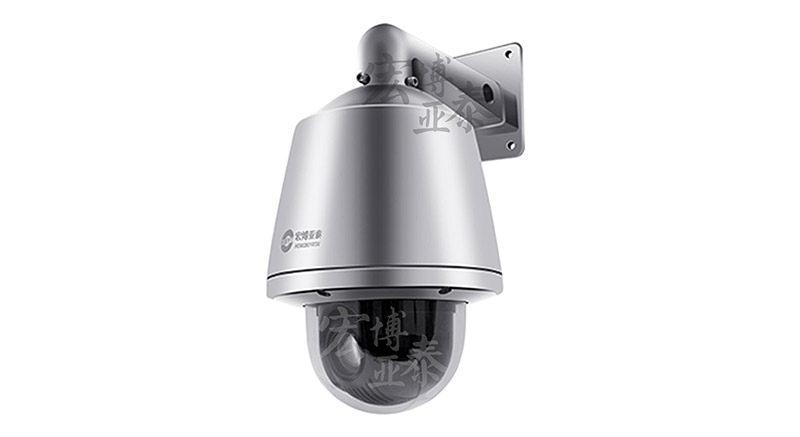

HB-6000Q-S7230
[30X 2MP] Explosion-Proof HD Smart Dome Camera
Use environment
It has IIa, IIb, IIc flammable gas, and the ignition temperature group is zone 1 and zone 2 of t1-t6 group. The flammable gas or the explosive mixture formed by steam and air is also applicable to the ignition temperature group. For the t1-t6 group of 20, 21, 22, including flammable dust mixtures. For example: petroleum, chemical, mining, military, pharmaceutical, oil depot, ship, drilling platform, gas station, fireworks production, grain processing Storage, etc.
Functional characteristics
● The highest level of explosion-proof certification for a variety of harsh and high-risk places
● High-performance 2 megapixel 1/2.8" cmos image sensor for high image clarity
● 30 times optical zoom, 16 times digital zoom, total zoom up to 480 times
● Support roi, svc, smart h.264/h.265, flexible coding, suitable for different bandwidth and storage environment
● Supports multi-action detection such as squall line intrusion, area intrusion, crossing fence, cockroach detection, item legacy, item moving, fast moving, personnel gathering, etc.; supports multiple triggering rules linkage action; supports target filtering
● Support single scene / multi scene / panorama settings, support target filtering and sensitivity settings
● 360° continuous rotation in the horizontal direction, continuous rotation from 180° to 90° in the vertical direction, continuous monitoring, no monitoring blind zone
● 8 cruise paths can be completed according to the preset positions. 5 track paths can be set, and the recording time of each path is greater than 15 minutes.
● Aviation grade high-strength polycarbonate explosion-proof transparent dome, hardened, anti-fog treatment, anti-reflection, light transmittance up to 96%
● Built-in semiconductor temperature control components for automatic heating and cooling
Product number | HB-6000Q-S7230 |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
Image Sensor | 1/2.8 inch cmos |
Sensor total pixel | About 2.16 million pixels |
Horizontal resolution | ≥1100TVL |
Maximum image size | 1920×1080 |
Resolution | 200W |
Minimum illumination | Color: 0.005Lux@F1.6 |
Black and white: 0.0005Lux@F1.6 | |
Gain control | automatic / manual |
3d noise reduction | stand by |
2d noise reduction | stand by |
Signal to noise ratio | ≥55dB |
White balance | Automatic / manual / tracking / outdoor / indoor / outdoor automatic / sodium lamp automatic / sodium lamp |
Electronic shutter | 1/1～1/30000s |
Electronic image stabilization | stand by |
Through fog function | stand by |
BLC | stand by |
Wide dynamic | stand by |
Strong light suppression | stand by |
Digital zoom | 16 times |
Day and night mode | Automatic icr filter color to black |
Focus mode | Automatic / semi-automatic / manual |
focal length | 4.5mm～135mm |
Zoom speed | About 4s |
Field of view | Level: 67.8°~2.77° (near focus to far focus) |
Close-up distance | 100mm~1000mm (near focus to far focus) |
Optical zoom | 30 times |
Aperture value | F1.6～F4.4 |
Fill light mode | No fill light |
Telephoto speed limit | stand by |
Power failure memory | stand by |
Privacy mask | Up to 24 areas and up to 8 areas on the same screen |
Idle action | Preset point / Auto patrol / Auto cruise / Horizontal line sweep |
Timed task | Preset point / Auto patrol / Auto cruise / Horizontal line sweep |
the message says | stand by |
Main stream resolution and frame rate | 50Hz:25fps(1920×1080)、50fps(1920×1080)、25fps(1280×960)、25fps(1280×720) |
60Hz:30fps(1920×1080)、60fps(1920×1080)、30fps(1280×960)、30fps(1280×720) | |
Substream resolution and frame rate | 50Hz:25fps(704×576)、25fps(352×288) |
60Hz:30fps(704×480)、30fps(352×240) | |
Third stream resolution and frame rate | 50Hz:25fps(1920×1080)、25fps(1280×960)、25fps(1280×720)、25fps(704×576)、25fps(352×288) |
60Hz:30fps(1920×1080)、30fps(1280×960)、30fps(1280×720)、30fps(704×480)、30fps(352×240) | |
Video compression | H.265/H.264BaselineProfile/H.264MainProfile/H.264HighProfile/M-JPEG |
Audio compression | G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2 |
Voice intercom | stand by |
Network protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
ROI | stand by |
SVC | stand by |
Regional focus | stand by |
Time display | Support, such as: week, date |
Application programming interface | Open API supporting software integration, support standard protocols (Onvif, CGI, GB/T28181), support Dahua SDK and third-party management platform access |
Browser | Support for IE7 or above (including ie7) Google, Firefox, Apple and other non-ie browsers |
Preview the number of users simultaneously | Up to 20 channels (total bandwidth 48m) |
Safe mode | Authorized username and password, as well as MAC address binding; HTTPS encryption; IEEE 802.1x network access control (whitelist) |
User Management | Multi-level user rights management |
Intelligent detection | Video dynamic/occlusion detection, audio detection, network disconnection detection, ip collision detection, encoder status detection, memory card status detection, storage space detection |
intelligent | Supports a variety of behavior detection such as squall line intrusion, area intrusion, crossing fence, cockroach detection, item legacy, item moving, fast moving, personnel gathering, etc.; supports multiple triggering rules linkage actions; supports target filtering; |
Face intelligence detection | Support single scene / multi scene / panorama settings, support target filtering and sensitivity settings |
Network Interface | Built-in rj45 network port, supporting 10m/100m network data |
Audio input | 1 in 1 out (optional) |
Sd card interface | Built-in Micro SD card slot, support SD/SDHC/SDXC (maximum support 128G), support manual recording/alarm recording, support for disconnected network transmission, video recording is not lost |
Rotation range | Level: 0°~ 360° continuous rotation, vertical: 0°~ 90° Automatically reverse 180° and continuously monitor |
Keying speed | Level: 0.1°~ 300°/s, vertical: 0.1°~ 250°/s, pan/tilt positioning can be accurate to 0.1° |
Call preset speed | Level 400°/s; Vertical: 300°/s |
PTZ function | Support idle action, support fd 3D positioning, support humanized focal length / speed automatic matching function |
Access standard | ONVIF、GB/T28181、CGI、PISA |
Alarm interface | 2 way switch input (0 ~ 5v dc); 1 way, support alarm linkage |
temperature range | -40℃~+70℃ |
Power supply | Ac24v 1.5a/poe-at/ac220v (optional) |
product material | 304 stainless steel material (used in chemical, acid and alkali corrosive environments) |
Inlet hole specification | 1 g3/4" entry hole |

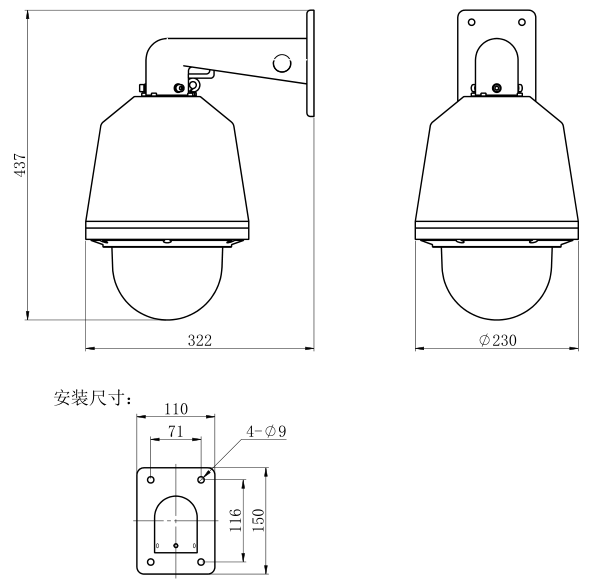

Installation method | A variety of installation options are available depending on the application environment |
product weight | ≤12kg |
Explosion Proof Junction Box
Explosion Proof Junction Box
Functional characteristics
● Explosion-proof grade: Ex d IIC T6 Gb/Ex tD A21 IP68 T80°C
● Protection level ip68
● With 6 g-3/4" outlet holes, can also be customized according to customer requirements
● Can be installed with power supply, air-opening, fiber optic transceiver, lightning protection module, terminal box and other related equipment
● Made of 304 stainless steel material, suitable for use in highly corrosive environments
● Non-standard explosion-proof control box can be customized according to customer needs
technical parameter
Product number | HB-EX08 |
Explosion-proof mark | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
temperature range | -40℃～ 60℃ |
product material | 304 stainless steel material (used in chemical and acid, alkali and other corrosive environments) |
Relative humidity | Not more than 95% (+25°c) |
Atmospheric pressure | 80kpa ～ 106kpa |
Constant temperature system | Optional |
Dimensions | 340mm*304mm*168 (handle height 24mm) |
Inner cavity size | 252mm*252mm*116mm |
Number of outlet holes / specifications | 6 g3/4" entry holes (optional) |
Installation method | Wall mounting, fixing bracket, column\platform |
product weight | ≤15kg |
Explosion Proof hose
Explosion Proof hose
Functional characteristics
● 304 stainless steel, suitable for use in highly corrosive environments
● Special explosion-proof equipment for connecting explosion-proof camera and explosion-proof box
● With flame resistance, corrosion resistance, water resistance, aging resistance, structural stability, and improved field reliability
Product number | interface | the inside diameter of | length |
HB-R18-1000 | G3/4"-G3/4" | 18mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-1000 | G1/2"-20*1.5mm | 13mm | 1000 |
G3/4"-20*1.5mm | 13mm | 1000 | |
HB-R13-700 | G3/4"-20*1.5mm | 13mm | 700 |
G1/2"-20*1.5mm | 13mm | 700 |
