Explosion-proof mark

Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db

Protection level

IP68

Image Sensor

1/2.8 inch cmos

Sensor total pixel

About 2.16 million pixels

Horizontal resolution

≥1000TVL

Maximum image size

1920×1080

Resolution

200W

Minimum illumination

Color: 0.005Lux@F1.6

Black and white: 0.0005Lux@F1.6

Gain control

automatic / manual

3d noise reduction

stand by

2d noise reduction

stand by

Signal to noise ratio

≥55dB

White balance

Automatic / manual / tracking / outdoor / indoor / outdoor automatic / sodium lamp automatic / sodium lamp

Electronic shutter

1/1～1/30000s

Electronic image stabilization

stand by

Through fog function

stand by

BLC

stand by

Wide dynamic

stand by

Strong light suppression

stand by

Digital zoom

16 times

Day and night mode

Automatic icr filter color to black

Focus mode

Automatic / semi-automatic / manual

focal length

5.0mm～115mm

Zoom speed

About 3.5s

Field of view

Level: 61°~2.8° (near focus to far focus)

Close-up distance

100mm~1000mm (near focus to far focus)

Optical zoom

23 times

Aperture value

F1.6～F3.5

Fill light mode

No fill light

Horizontal range

0°~360° continuous rotation

Vertical range

0°~90° Automatically flipped 180° and continuously monitored

Keying speed

Level: 0.1°~300°/s

Vertical: 0.1°~250°/s

Call preset speed

Level: 400°/s

Vertical: 300°/s

Telephoto speed limit

stand by

Preset

300

Automatic cruise

8 bars, each can add 32 preset points

Automatic patrol

5

Automatic line sweep

5

Power failure memory

stand by

Privacy mask

Up to 24 areas and up to 8 areas on the same screen

Idle action

Preset point / Auto patrol / Auto cruise / Horizontal line sweep

Timed task

Preset point / Auto patrol / Auto cruise / Horizontal line sweep

PTZ function

Support idle action, support fd three-dimensional positioning, support humanized focal length / speed automatic matching function

the message says

stand by

Main stream resolution and frame rate

50Hz:25fps(1920×1080)、50fps(1920×1080)、25fps(1280×960)、50fps(1280×960)、25fps(1280×720)、50fps(1280×720)

60Hz:30fps(1920×1080)、60fps(1920×1080)、30fps(1280×960)、60fps(1280×960)、30fps(1280×720)、60fps(1280×720)

Substream resolution and frame rate

50Hz:25fps(704×576)、25fps(352×288)

60Hz:30fps(704×480)、30fps(352×240)

Third stream resolution and frame rate

50Hz:25fps(1920×1080)、25fps(1280×960)、25fps(1280×720)、25fps(704×576)、25fps(352×288)

60Hz:30fps(1920×1080)、30fps(1280×960)、30fps(1280×720)、30fps(704×480)、30fps(352×240)

Video compression

H.265/H.264BaselineProfile/H.264MainProfile/H.264HighProfile/M-JPEG

Audio compression

G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2

Voice intercom

stand by

Network protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

ROI

stand by

SVC

stand by

Regional focus

stand by

Time display

Support, such as: week, date

Application programming interface

Open API supporting software integration, support standard protocols (Onvif, CGI, GB/T28181), support Dahua SDK and third-party management platform access

Browser

Support for IE7 or above (including ie7) Google, Firefox, Apple and other non-ie browsers

Preview the number of users simultaneously

Up to 20 channels (total bandwidth 48m)

Safe mode

Authorized username and password, as well as MAC address binding; HTTPS encryption; IEEE 802.1x network access control (whitelist)

User Management

Multi-level user rights management

Intelligent detection

Video dynamic/occlusion detection, network disconnection detection, ip collision detection, memory card status detection, storage space detection

intelligent

Supports multi-action detection such as squall line intrusion, regional intrusion, crossing fence, cockroach detection, item legacy, item moving, fast moving, etc. Supports multiple triggering rules linkage action; supports target filtering

Face intelligence detection

stand by

Network Interface

Built-in rj45 network port, supporting 10m/100m network data

Alarm interface

1 in 1 out (optional)

Alarm linkage

Capture/preset point/cruise/patrol/sd card recording/trigger switch output/client electronic map/send mail

audio port

1 in 1 out (optional)

Sd card interface

Built-in rj45 network port, supporting 10m/100m network data

temperature range

-40℃~+70℃

Power supply

Ac24v 1.5a/poe-at/ac220v (optional)

product material

304 stainless steel material (used in chemical, acid and alkali corrosive environments)

Inlet hole specification

1 g3/4" entry hole

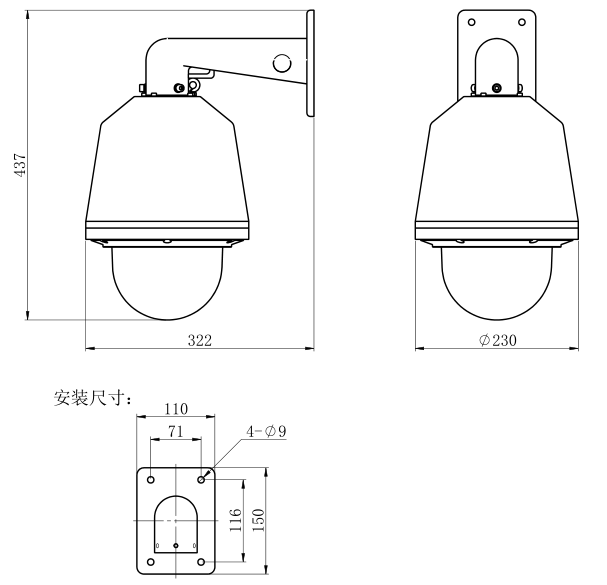

Installation method

A variety of installation options are available depending on the application environment

product weight

≤12kg
